The best lathe and mill tooling for 2026

Tooling is where a bench lathe becomes usable or stays frustrating. We cover indexable inserts and their geometry, tool holders and quick-change posts, collets, and chucks — with a bias towards what a light machine can actually drive without stalling or chattering.

By

What we recommend

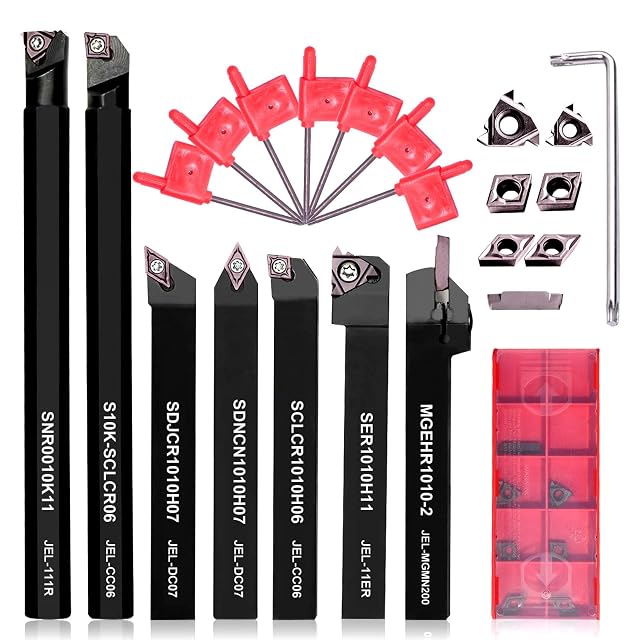

  1. Donken 10 mm indexable turning tool set, 21 pieces, product photograph

    Donken 10 mm indexable turning tool set, 21 pieces

    Indexable tooling for a small lathe: when an edge dulls you turn the insert rather than grind a tool.

    Shank
    10 mm (0.39 in)
    Quantity
    21 pieces
    Type
    Indexable holders with carbide inserts
    Amazon reference
    B09GKGCP6B
    EAN
    6226126800919
    • Indexable inserts: rotate to a fresh edge instead of regrinding a tool
    • 10 mm (0.39 in) shank suits small bench lathes and modelmaking machines
    • Verified on the German store only at the time of checking

    Best for: A first tooling set for a small lathe, bought with the machine

    Search Amazon for this model

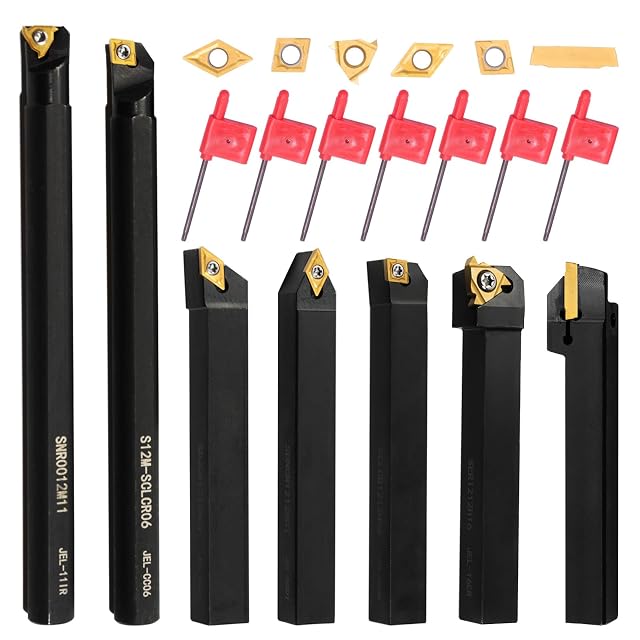

  2. Donken 12 mm indexable turning tool set, 21 pieces, product photograph

    Donken 12 mm indexable turning tool set, 21 pieces

    The same set in 12 mm — the shank size most bench lathes above the smallest actually take.

    Shank
    12 mm (0.47 in)
    Quantity
    21 pieces
    Includes
    Boring bar holder
    Type
    Indexable carbide
    Amazon reference
    B09GLFD1RL
    EAN
    6226126800957
    • 12 mm (0.47 in) is the common shank size on bench lathes of 180 mm (7.09 in) swing and up
    • A boring bar is included, which many sets omit
    • Verified on the German and French stores only at the time of checking

    Best for: The bench lathes on this site with 180 mm (7.09 in) swing or more

    Search Amazon for this model

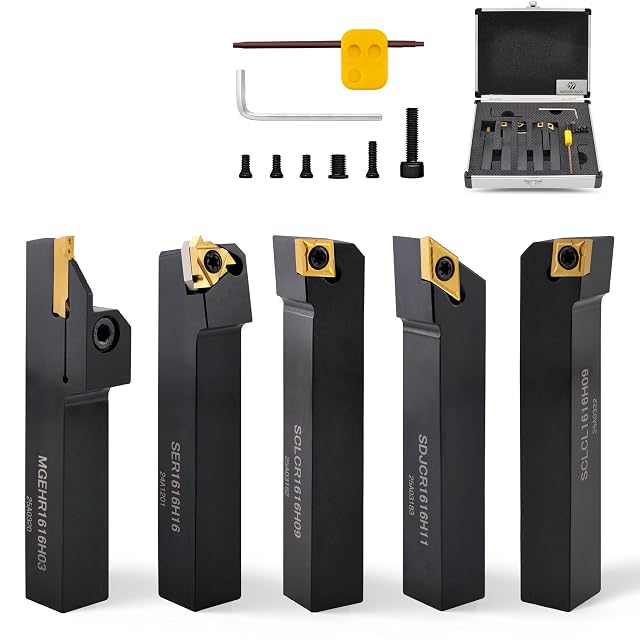

  3. HOPSON TOOLS 16 mm carbide turning tool set, 10 pieces, product photograph

    HOPSON TOOLS 16 mm carbide turning tool set, 10 pieces

    Sixteen-millimeter shanks for a heavier lathe: five holders, five inserts, and rigidity where it counts.

    Shank
    16 mm (0.63 in)
    Contents
    5 holders and 5 indexable inserts
    Type
    Carbide indexable
    Amazon reference
    B0FCS779YW
    EAN
    0725650977556
    • 16 mm (0.63 in) shanks are far stiffer than 10 or 12 mm (0.47 in) — less chatter under load
    • Live on all six markets under one reference
    • €95, and only five inserts to start with

    Best for: Larger bench lathes with a 16 mm (0.63 in) tool post, cutting steel at depth

    Check price on Amazon

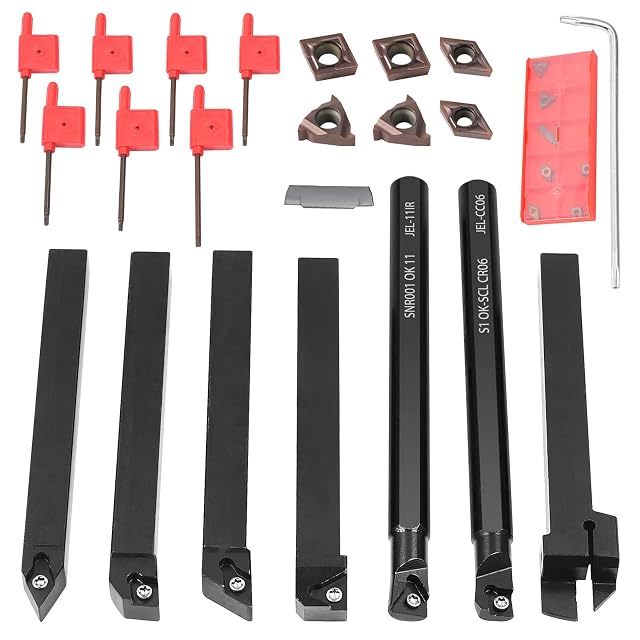

  4. MIRTHBUY 10 × 10 mm turning tool holders with carbide inserts, product photograph

    MIRTHBUY 10 × 10 mm turning tool holders with carbide inserts

    The cheapest indexable tooling here at €37 — a way to find out whether indexable suits your lathe.

    Shank
    10 × 10 mm (0.39 × 0.39 in)
    Type
    Holders with carbide inserts
    Amazon reference
    B08M41CJ2N
    EAN
    8711468101858
    • €37 to try indexable tooling rather than committing to a full set
    • 10 × 10 mm (0.39 × 0.39 in) suits the small lathes on this site
    • Cheap inserts vary in edge preparation, which shows in the finish

    Best for: A first experiment with indexable tooling on a modelmaking lathe

    Search Amazon for this model

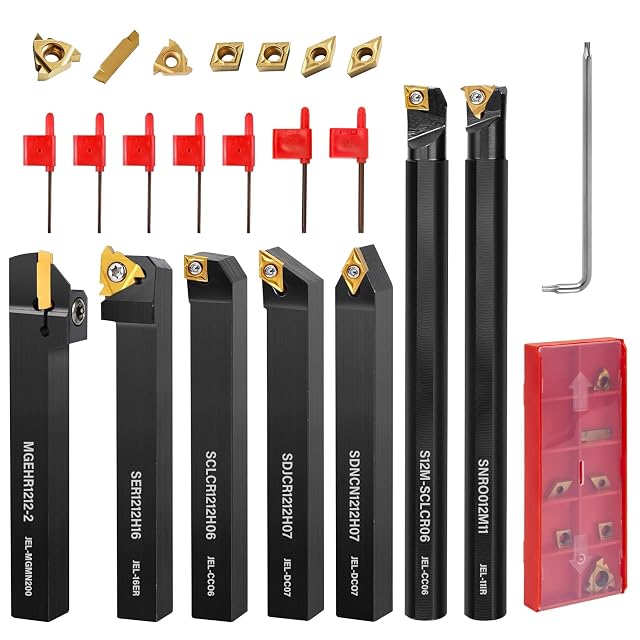

  5. SZHLUX indexable lathe turning tool set with seven holders and inserts

    SZHLUX LTT-7, 14-piece 12 mm set

    The simplest set on this shelf: one insert per holder, a published shank size and a piece count that matches its own contents.

    Amazon reference
    B0F6MGBRDX
    EAN
    0789513650420
    • Seven holders covering turning, threading, grooving and boring in one purchase
    • The piece count is honest: fourteen pieces, being seven holders and seven inserts
    • One insert per holder and no spares — the first chipped edge means an order

    Best for: A first set of indexable tooling for a 12 mm (0.47 in) tool post, bought without the spares

    ≈ $76
    Check price on Amazon

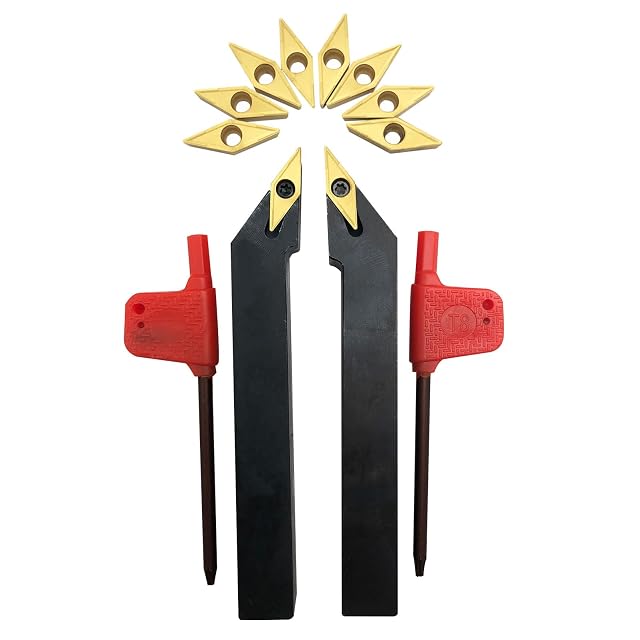

  6. Hunricho SVJCR and SVJCL turning tool holders with VCMT carbide inserts

    Hunricho 0028-1236, two boring bars and ten VCMT inserts

    The only listing on this shelf that publishes the insert geometry — nose radius, thickness, bore, included angle — and the alloy the holder is made of.

    Amazon reference
    B0CMTTZMZF
    EAN
    0728683215022
    • Publishes the full insert geometry: 35-degree included angle, 0.43 in edge length, 0.125 in thickness, 0.11 in bore, 1/64 in nose radius, single sided
    • Publishes the holder alloy — 40CrMnTi — rather than calling it carbide
    • Two holders only: no grooving, threading or boring tool in the set

    Best for: A light lathe doing profile work, where a 35-degree insert reaches into a corner

    ≈ $27
    Check price on Amazon

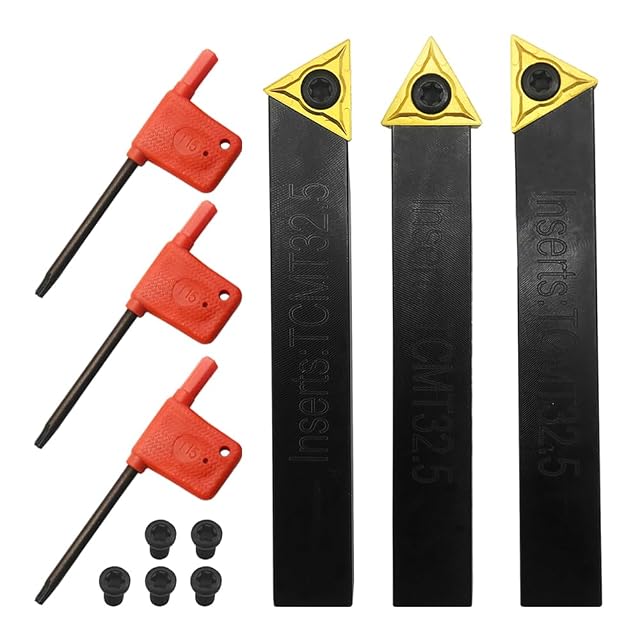

  7. GBJ three indexable lathe turning tool holders with TCMT inserts

    GBJ GBIUO-48EF156, three holders with TCMT inserts

    Three holders rather than seven, with the two things this hub’s buying tip asks for both published: a positive rake and a built-in chip breaker.

    Amazon reference
    B0D4C8H9PX
    EAN
    0797999724115
    • States a positive rake cutting angle and a built-in chip breaker — exactly what this hub’s buying tip calls for on a small machine
    • Publishes the holder steel, 40CrMo, with a black oxide finish
    • Three holders: no threading, grooving or parting tool

    Best for: External turning and facing on a light lathe, where three holders cover the work

    ≈ $23
    Check price on Amazon

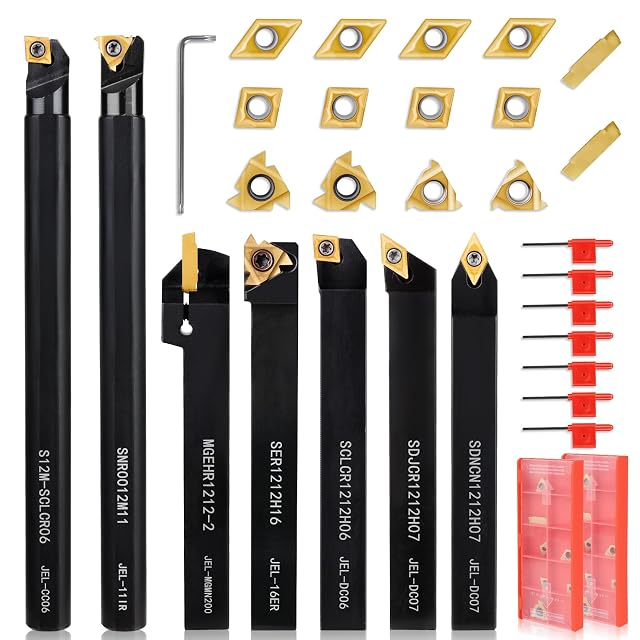

  8. VERFUTHL 21-piece indexable lathe turning kit with holders and inserts

    VERFUTHL SDNCN12120H07, 21-piece 12 mm kit

    A seven-holder kit whose designation list, including a misspelled holder code, matches another brand’s kit on this shelf exactly.

    Amazon reference
    B0H3H5TFD7
    EAN
    0786731198116
    • Names all seven holder designations, so inserts and replacements can be identified
    • Fourteen inserts for seven holders — a spare edge for each
    • Its own contents add to twenty-nine — seven holders, fourteen inserts, eight wrenches — under a "21Pcs" heading

    Best for: A 12 mm (0.47 in) tool post, where fourteen inserts and eight wrenches matter more than the brand

    ≈ $37
    Check price on Amazon

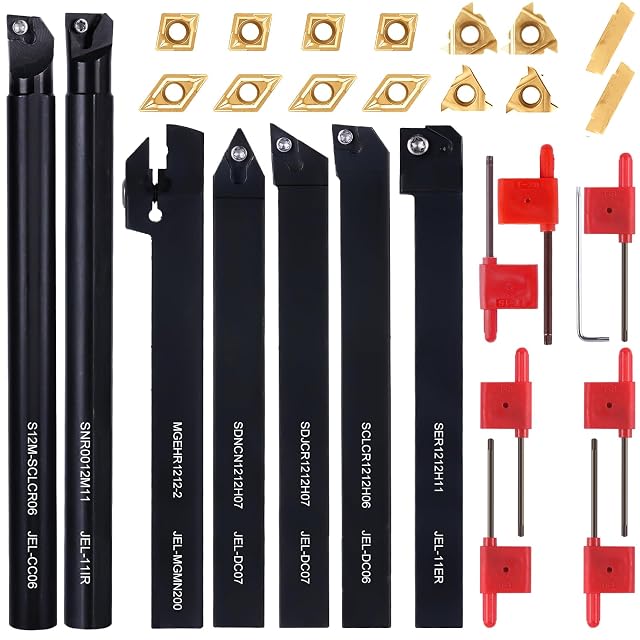

  9. LYMMIYTC 21-piece indexable lathe turning tool kit

    LYMMIYTC SDJCR1212H07, 21-piece 12 mm kit

    A seven-holder kit indistinguishable on its published data from the VERFUTHL kit above it — down to an invalid holder code both listings print.

    Amazon reference
    B0CQPBNQG9
    EAN
    0756593187764
    • Names all seven holder designations
    • Fourteen inserts for seven holders, with eight matched wrenches
    • Its own contents add to twenty-nine under a "21Pcs Kit" heading

    Best for: The same 12 mm (0.47 in) tool post, at whichever of the two prices is lower on the day

    ≈ $39
    Check price on Amazon

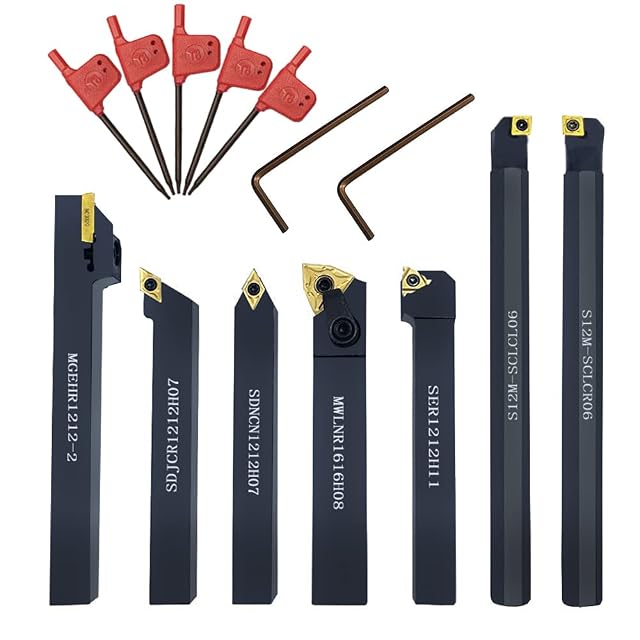

  10. KinRite seven indexable lathe turning tool holders with inserts fitted

    KinRite Seven-holder 1/2 in set with C6 TiN inserts

    The only listing on this shelf to publish a holder hardness — HRC 48 — in the same sentence that calls the holder cemented carbide.

    Amazon reference
    B09CHDVNZ3
    EAN
    0706926112284
    • Publishes a hardness figure for the holders, around HRC 48, which no other listing here does
    • Publishes the lengths: two 150 mm (5.91 in) boring holders and five at 100 mm (3.94 in)
    • Describes the holders as "quality cemented carbide and tungsten steel（40CrMo）" — 40CrMo is an alloy steel, and HRC 48 is a steel hardness

    Best for: A 12 mm (0.47 in) tool post, where the boring holders’ length and lead angle are the deciding figures

    ≈ $40
    Check price on Amazon

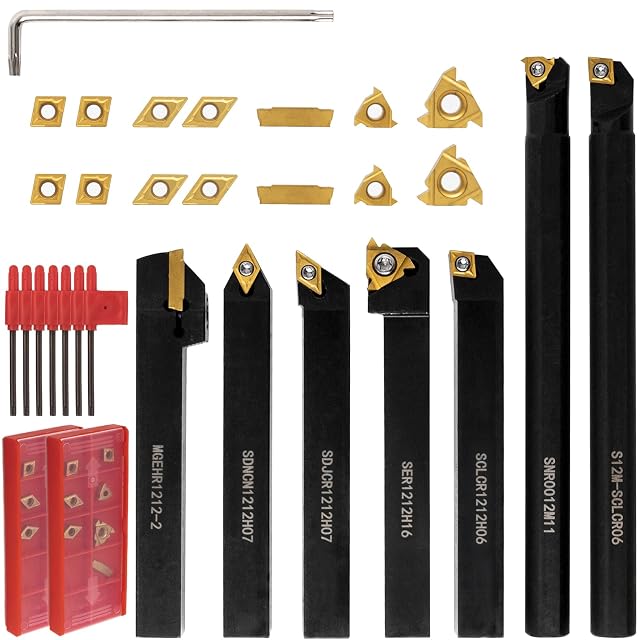

  11. ZiBeiLe 21-piece indexable lathe turning tool kit with holders and inserts

    ZiBeiLe A22-WTD-CEF314, 21-piece 12 mm kit

    A seven-holder kit that names every designation and then claims its holders are made of cemented carbide — which at this price nothing on this shelf is.

    Amazon reference
    B0CPYKPBNJ
    EAN
    0770701686314
    • Names all seven holder designations, including a threading holder and a grooving holder
    • Fourteen CVD-coated inserts for seven holders — a spare edge each
    • Claims the holders are "crafted from industrial-grade cemented carbide and tungsten steel", which no holder on this shelf is

    Best for: A 12 mm (0.47 in) tool post needing a full spread of operations with spare insert edges

    ≈ $40
    Check price on Amazon

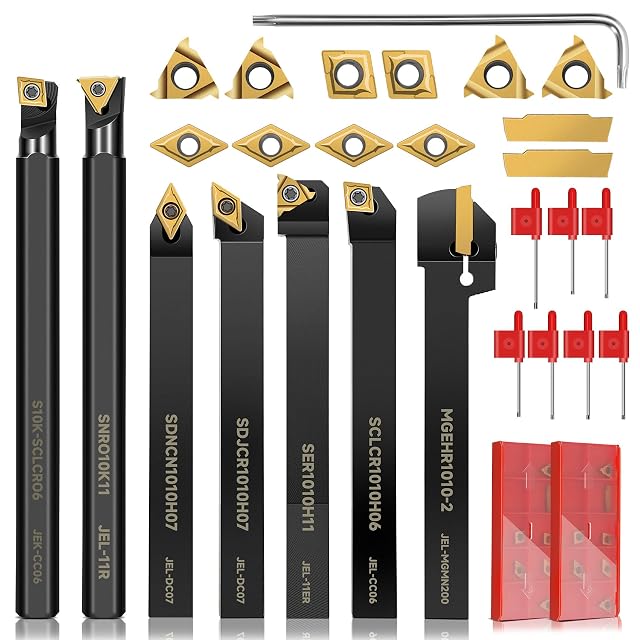

  12. Joogto 21-piece indexable turning kit with 10 mm shank holders

    Joogto 21-piece 10 mm kit

    The same seven-tool spread built on a 10 mm (0.39 in) shank rather than 12 — which is the size most small bench lathes actually take.

    Amazon reference
    B0BYZJG3BW
    EAN
    0602835344252
    • A 10 mm (0.39 in) shank, which is what most 7 by 12 and 7 by 14 bench lathes are tooled for
    • Names all seven holder designations, every one of them in the 1010 and 0010 series
    • Claims its holders are "crafted from cemented carbide and tungsten steel", which no holder on this shelf is

    Best for: A mini lathe whose tool post will not close on a 12 mm (0.47 in) shank

    ≈ $46
    Check price on Amazon

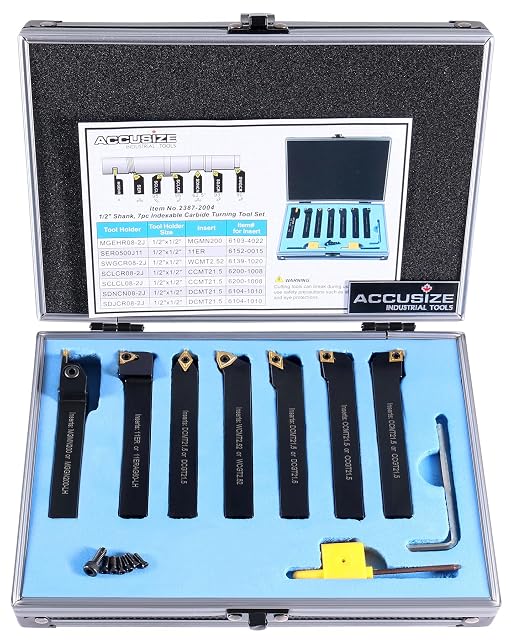

  13. Accusize seven-piece indexable turning tool set in a fitted aluminum case

    Accusize Industrial Tools 2387-2004, seven-piece 1/2 in set

    The only set in this hub that publishes which insert belongs in which holder — and the part number of the replacement insert kit.

    Amazon reference
    B00SS1YGY4
    EAN
    0641799804334
    • Names each holder with the insert that belongs in it: MGEHR08-2J with MGMN200-M, SER0500J11 with 11ER A60, SWGCR08-2J with WCMT22, SCLCR08-2J and SCLCL08-2J with CCMT21.5, SDNCN08-2J and SDJCR08-2J with DCMT21.5
    • Publishes the replacement insert kit part number separately
    • Three to four times the price of the seven-holder kits on this shelf

    Best for: A workshop that intends to keep the holders and buy inserts for years

    ≈ $110
    Check price on Amazon

Choosing within lathe tooling, by need

Equipping your machine

The shank section has to match the lathe’s tool post exactly. A shank too large will not fit, too small it chatters.

HOPSON TOOLS 16 mm carbide turning tool set, 10 pieces

A starter set

A boxed set covers the common approach angles: facing, turning, grooving, threading. It is the best point of entry.

Donken 10 mm indexable turning tool set, 21 pieces

Lathe tooling and who each one is for

Starting on the lathe
A turning tool, a facing tool and a parting tool cover the essentials of early work.
Without knowing how to grind
Insert tooling lets you start immediately: the insert is rotated instead of being re-ground.
Special shapes
High-speed steel tools are re-ground to whatever shape is wanted, which no insert allows. That is their irreplaceable advantage.

The trade-offs of lathe tooling

Insert against high-speed steel
The insert is rotated and costs to run; high-speed steel is re-ground at will and demands that you can grind. The second allows bespoke shapes.
Shank section against rigidity
A larger shank chatters less and has to fit the tool post. It is a geometric constraint of the machine, not a choice.
Boxed set against chosen tools
A set costs little per tool and contains rarely used shapes. Three well-chosen tools do the essential.

What keeps coming up about lathe tooling

What shank section should I take?

Exactly the one the lathe’s tool post accepts. A smaller shank shimmed up with packing chatters and ruins the surface finish.

Does tool height need setting?

Imperatively, to the workpiece centreline. Too high or too low and the tool rubs instead of cutting and leaves a pip in the center.

Insert or high-speed steel?

Inserts to start without knowing how to grind, high-speed steel to make bespoke shapes. Many workshops keep both.

Why is the surface finish poor?

Unsuitable speed or feed, a dull tool, or too much overhang. Reducing the overhang is often the most effective correction.

How do I choose the cutting speed?

By material and diameter: the larger the piece, the slower it must turn. Tables give the starting point.

Can inserts be rotated?

Yes, several times depending on their number of edges. That is their main appeal: a few seconds instead of a grinding session.

Do I need lubricant?

In steel and stainless, yes, for surface finish as much as tool life. Cast iron is machined dry.

How do I part off without breaking the tool?

Tool exactly on center, minimal overhang, steady feed with no jerks. Parting off is the trickiest operation on the lathe.

In short, on lathe tooling

Tool height on the workpiece centreline is the setting that decides everything: too high or too low and the tool rubs instead of cutting. Reduce the overhang before changing tools, and know that parting off breaks more tools than anything else.

Lathe tooling at a glance

  • Shank: 10 to 16 mm (0.63 in), on 4 of the 13 models.

Lathe tooling, side by side

There is no table here, and the reason is in the listings. The figure published most often across these 13 products is shank, given by 4 of them — short of the four in five a column needs to compare rather than to display gaps. Each product page says what its own maker published.

Where each budget reaches on this shelf

Lower range

$23 – $37

3 models

GBJ GBIUO-48EF156, three holders with TCMT inserts, Hunricho 0028-1236, two boring bars and ten VCMT inserts, VERFUTHL SDNCN12120H07, 21-piece 12 mm kit

Mid range

$39 – $40

3 models

LYMMIYTC SDJCR1212H07, 21-piece 12 mm kit, KinRite Seven-holder 1/2 in set with C6 TiN inserts, ZiBeiLe A22-WTD-CEF314, 21-piece 12 mm kit

Upper range

$46 – $110

3 models

Joogto 21-piece 10 mm kit, SZHLUX LTT-7, 14-piece 12 mm set, Accusize Industrial Tools 2387-2004, seven-piece 1/2 in set

Sources, and the ranking

Specifications: manufacturer sheets for welding and metalworking machines and the matching Amazon product pages. Prices and availability: Keepa.

Most recent revision in this category: October 7, 2026.

How we assess lathe tooling

Prices quoted in these summaries are dated readings. The live price is shown next to each product.
